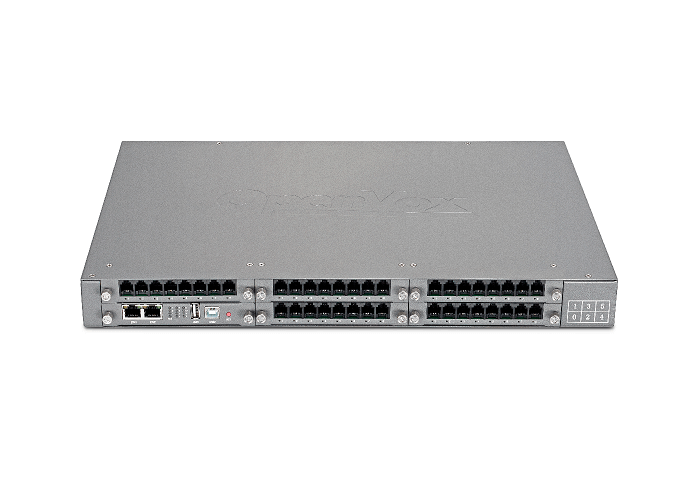

Openvox VS-GW1600 V2 FXS Analog Gateway-40

There are three Analog Gateway models , the VS-GW1200-8S, the VS-GW1202-16S and VS-GW1600 Analog series. The VS-GW1200-8S can support 8 channels, the VS-GW1202-16S can support 16 channels at the same time, and VS-GW1600 Analog series can support up to 40 channels synchronously. The Modular Design Analog Gateways are developed for interconnecting a wide selection of codecs including G.711A, G.711U, G.729, G.722, G.723, G.726, ILBC. The Analog Gateways use standard SIP protocol and fully compatible with Leading IMS/NGN platform, IPPBX and SIP servers.

Technical Specifications:

• 8/16/24/32/40 FXS ports
• 2 LAN ports
• Storage temperature range: -20~70℃
• Operation temperature range: 0~40℃
• Operation humidity range: 10%~90% non-condensing
• Power source: 100-240V/1-2A
• Max Power Consumption: 60W
• Dimension: 44cm × 4.5cm × 30cm
• Weight: 4353g

Software & Platform:

• Linux

Features

• Simple and convenient configuration via Web GUI
• Abundant Log Features
• Open API interface（AMI）
• Support T.38 fax relay and T.30 fax transparent,can continually fax multiple pages
• Echo cancellation and Static jitter buffer
• Support DTMF relay
• Support Ring cadence and frequency setting
• Support volume control
• Support MWI(Message waiting indicator)
• Support DHCP、DNS/DDNS、NAT networking
• Support diverse SIP protocols
• Diverse extensible applications, such as IVR,DISA
• Support NTP time synchronization and client time synchronization
• Support modify username and password for web login
• Support SSH remote operation

• Support SRTP
• Support SIP server mode
• Support update firmware online
• Support configuration file backup and upload
• Support for custom scripts, dialplans
• Support restore the factory settings
• Support VAD and CNG
• Independent System for Each Module
• Affordable Price with Superior Performance
• Hot-swap Design for Modules
• Compatible with Asterisk, Elastix, 3CX, FreeSWITCH Sip Server and VOS VoIP operating platform
• Available for OEM
• 3-Month «  »No Questions Asked » » Return Policy
• One Year Warranty
